Chamberlain Garage Door Openers: B4310 and RJO101
Request an Opener Assessment
Garage Door Doctor helps homeowners in Eatonton, Greensboro, and Madison, Georgia, assess garage door opener replacements. The Chamberlain B4310 and RJO101 solve different installation problems: one hangs overhead on a belt rail, while the other mounts beside a suitable door. Product availability and installation for these Chamberlain models must be confirmed before an order is placed.
B4310 or RJO101: Which Layout Fits?
Question
Where does it mount?
Overhead, using a belt-drive rail
Beside the door, on a compatible torsion-bar setup
Why consider it?
You want a conventional overhead layout with battery backup, connected controls, and a camera
You want to free up ceiling space and the door and hardware meet the wall-mount requirements
When should you pass?
Clearing the ceiling is the main objective, or the layout cannot take an overhead rail
The door has extension springs, incompatible drums or tracks, or insufficient clearance

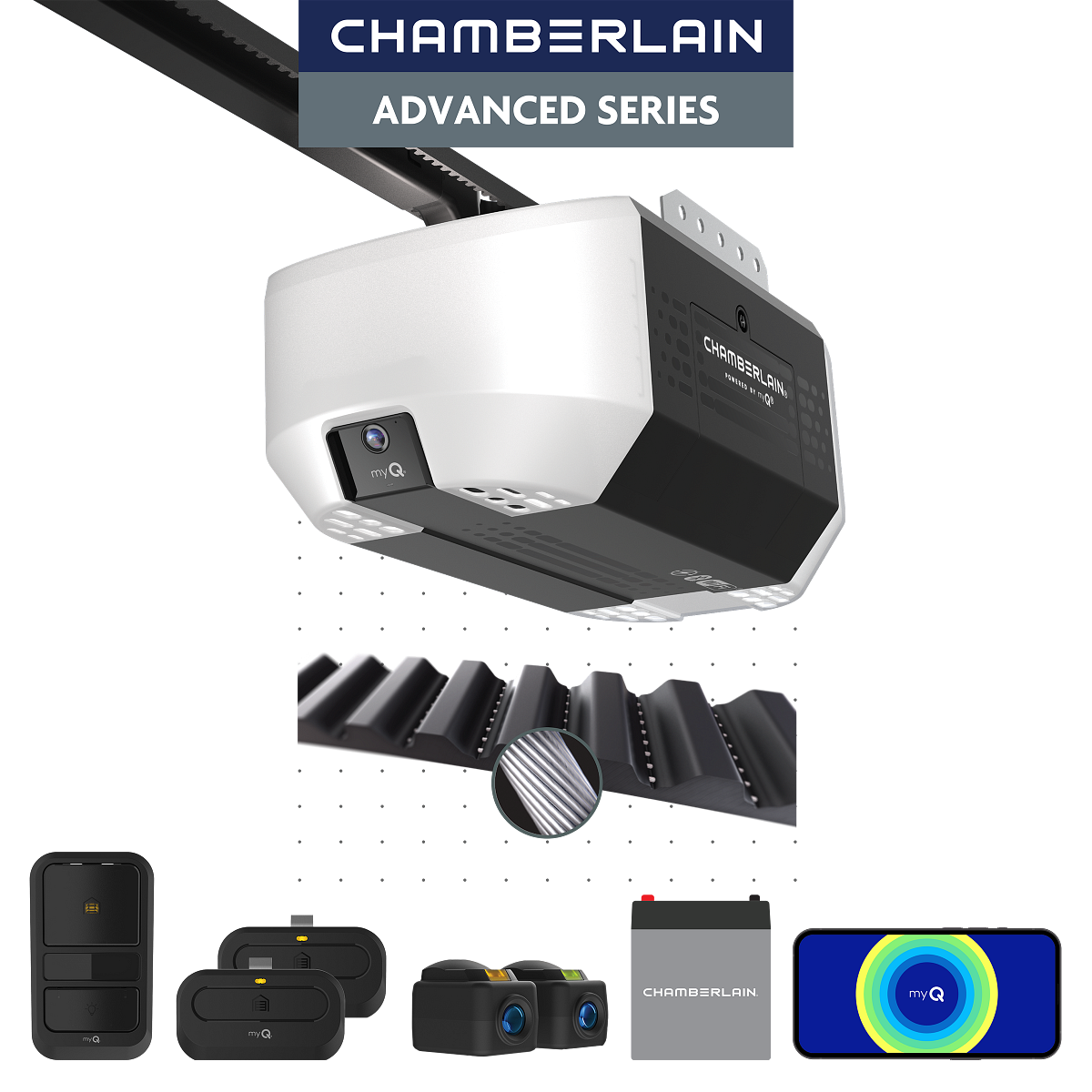

The B4310 uses a direct-current motor and is advertised with a lift-capacity comparison of 3/4 horsepower. That is not a measured motor horsepower rating. Its listed features include battery backup, myQ connectivity, and a camera; confirm current app and recording terms before purchase.
The RJO101 is a wall-mounted direct-drive opener with battery backup, connected controls, and an automatic door lock. Its owner's manual limits installation to sectional doors with torsion assemblies and specifies installation by trained garage door technicians. It is not a universal space-saving upgrade. The manufacturer's pre-purchase checklist addresses the torsion bar, drums, electrical outlet, clearances, and door dimensions. Have a technician assess these conditions rather than assuming a wall beside the door is enough.
What Should Be Evaluated Before Replacing an Opener?
The opener should be matched to a properly working door, not used to overcome a mechanical fault. If the door is crooked, unusually heavy, or has a loose cable or broken spring, do not use it until a technician has inspected it. Do not handle springs, cables, or drums. For an evaluation of the existing unit and door, see opener installation and garage door repair.
If a healthy overhead opener already does what you need, a wall-mount conversion may add cost and fit constraints without a useful benefit. Decide first whether ceiling clearance, outage access, app control, or visual monitoring is the real problem to solve.
Download Official Chamberlain Documents
The following Portable Document Format (PDF) files can be downloaded from the manufacturer.
B4310 User's Guide (PDF)
Multi-model user guide that explicitly includes B4310; it is not a stand-alone brochure.
Download PDFRJO101 Owner's Manual (PDF)
Installation and operation details for the wall-mount model.
Download PDFThese manufacturer-hosted files are downloads, but they are guides and a checklist, not product brochures. Check the current product pages for updates.
